DESOI w.i.l.m.a. - AY
DESOI AirPower M35-3C VA

   You can also rent this device flexible.

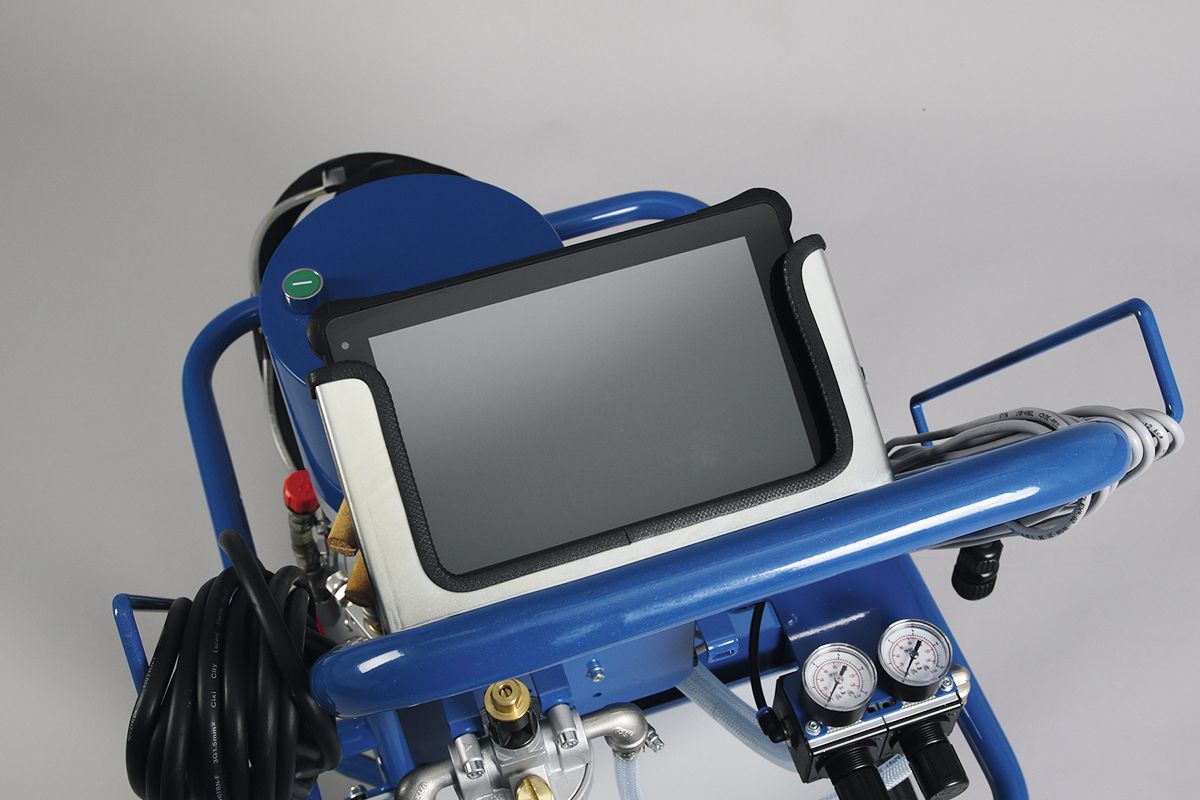

moving device, 1.2 m suction system Ø 20 mm with suction basket Ø 100 mm: component A and B: black, 2 x manometer 0 - 250 bar, rinsing pump S25, 1.2 m suction system Ø 13 mm with suction basket Ø 40 mm: black, material hose connection: component A: external thread M16x1,5; component B: external thread M14x1,5; rinsing connection: external thread M12x1,5; return hoses Ø 8 mm: transparent, air connection: air plug NW 7.2, DESOI w.i.l.m.a.: control cabinet with integrated control, 10 m supply cable, on/off switch, control lamp, 2 x flow sensor, pressure sensor, Rugged Tablet PC 10.1" IP67 with Software for w.i.l.m.a. and protective foil, incl. instruction manual > A professional briefing is mandatory (free of charge on collection) > On-site instruction on the construction site by an experienced application technician with subsequent application support is also possible (2 hours included) > Arrival and departure are charged at cost > A tariff must be selected for the w.i.l.m.a. data management system
  • All material contacting parts of stainless steel
  • Big material passages
  • Easy maintenance and repair
  • Fixed mixing ratio 1 : 1 - continuously electronically monitored
  • You can find more information on the application and process techniques with the DESOI w.i.l.m.a. in the STUVA ABI leaflet "Sealing of structures by injection", 4th edition - Part III/1.3.2 from p. 57.
  • acrylate gel
Working pressure - infinitely variable 5 - 120 bar
Delivery rate
- with air performance of 0,7 m³/min (2 x compressor V-Meko 400) max. 10 l/min
- with air performance of 1.3 m³/min max. 13 l/min
Air consumption min. 0.5 m³/min
Transmission ratio 1:15
Mixing ratio 1:1
Air pressure max. 8 bar
Weight 85 kg
L x W x H 77 x 55 x 112 cm
Rinsing pump
Working pressure - infinitely variable 7 - 220 bar
Delivery rate 5 l/min
Transmission ratio 1:27,5
Control cabinet
Supply voltage (adjustable ex works) 110 - 230 V/0,5 Ampere
Storage type digitally on tablet
Data transfer WLAN
Measuring range - volume (depending on the sensor) 100 l/min.
Measuring range - pressure (depending on the sensor) max. 250 bar*
Measurement accuracy ± 2 % v ME
Weight 8.62 kg
L x W x H 30 x 19 x 33 cm
*1 bar = 105 Pa. (Pascal)
Tablet
Storage type digitally on tablet
Hard disk space 64 GB
Data transfer WLAN
Weight - tablet 1,26 kg
L x W x H - tablet 28 x 19 x 3,5 cm
The combination DESOI w.i.l.m.a. and DESOI AirPower M35-3C VA is ideal for injection work with acrylic gel. The piston pump achieves a delivery rate of max. 13 l/min at a mixing ratio of 1:1 and is equipped with a separate rinsing pump. The sealing sets inside are protected by an integrated spring pre-tensioned, manual re-tensioning is not necessary. DESOI w.i.l.m.a. monitors and documents the material consumption, the injection pressure and the mixing ratio.
